Mastering Every other Size: An Isometric Representation Instructional

Isometric illustrations—two-dimensional figures that seem third-dimensional—upload intensity and emphasis to app and internet graphics, bettering person enjoy and engagement. For instance, isometric spot icons, which have a tendency to be greater than interface icons, can be utilized to emphasise microcopy and calls to motion. Different isometric pictures, akin to infographics, diagrams, and product renderings, be offering readability when customers want detailed product knowledge or a chicken’s-eye view of a procedure. As an example, a automobile producer’s site may show an exploded isometric rendering to exhibit the precision engineering of its portions, or an actual property corporate may supply an isometric representation to focus on necessary milestones for potential homebuyers.

Isometric illustrations may also be difficult and time-intensive to supply. Then again, I’ve spent a number of years developing isometric vector illustrations for shoppers and feature found out a sooner strategy to lead them to. On this isometric representation educational for UI designers, I provide an explanation for the way to use Adobe Illustrator’s 3-d Revolve impact to create isometric items in six easy steps.

Easy methods to Create an Isometric Representation in Adobe Illustrator

In Adobe Illustrator, you’ll be able to briefly create isometric illustrations the usage of the device’s 3-d results. On this educational, we’ll make a easy isometric drawing of a bottle and label the usage of the Revolve impact, however those insights additionally observe to Illustrator’s different 3-d results like Extrude and Bevel.

Step 1: Draw the Bottle and Liquid

Create a brand new Adobe Illustrator report, and upload a picture reference of a bottle to the report. Draw an overview of the bottle and the liquid inside of. Break up the bottle and liquid in part. The stroke thickness of the bottle’s contour will outline the glass thickness.

Professional tip: Reproduction and paste the paintings out of doors the artboard as a backup.

Creating isometric illustrations starts with outlining a reference image and cutting it in half. This tutorial uses a short-necked bottle as an example.

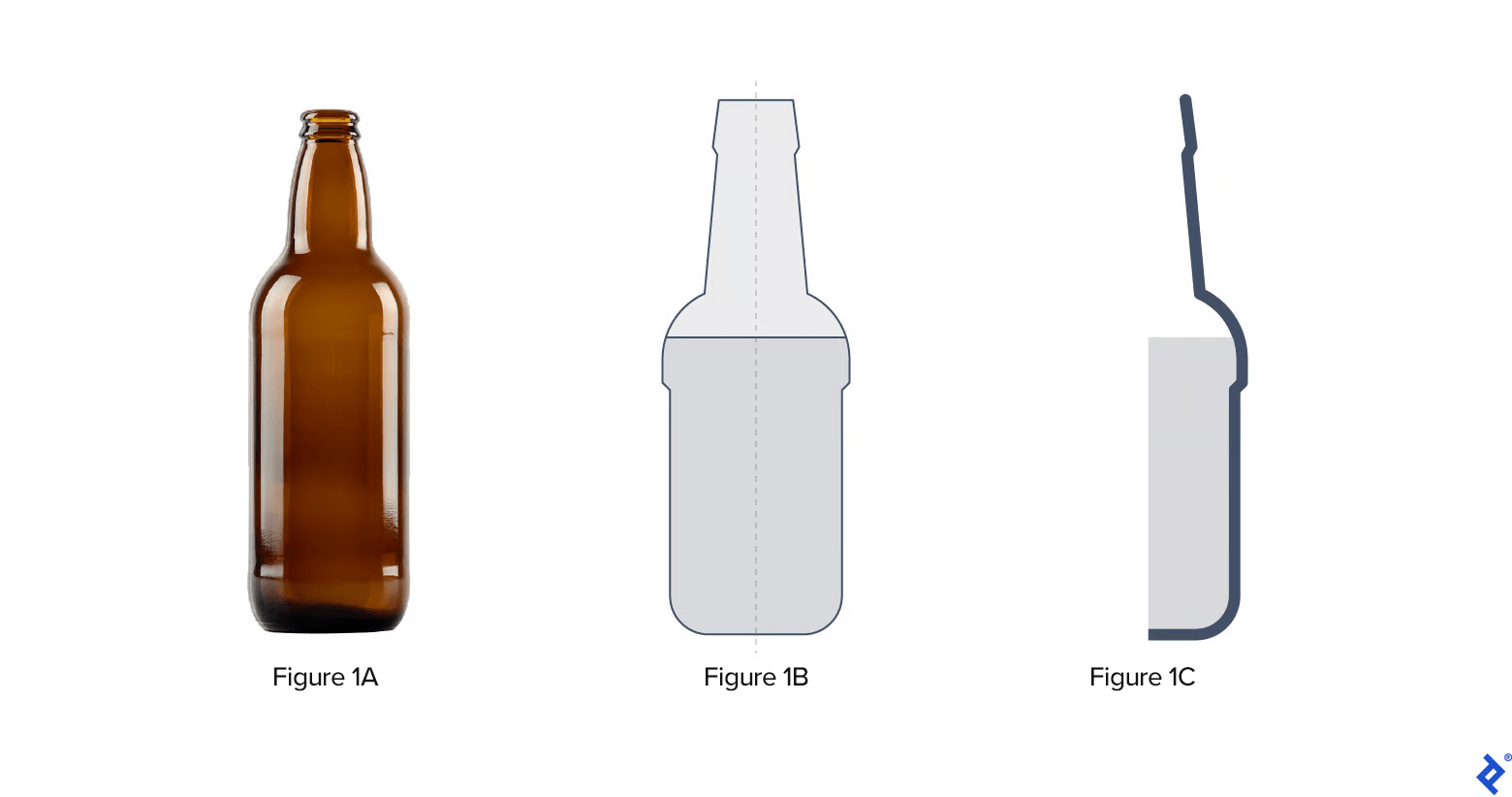

Determine 1A: Paste in a reference symbol of a bottle. Determine 1B: Draw the bottle and liquid. Determine 1C: Break up the bottle in part.

Step 2: Observe the Revolve Impact

As its identify suggests, the Revolve impact turns the trail in a round route round its international y-axis (revolve axis) to create a 3-d object. In Adobe Illustrator, the placement of the Revolve axis is fastened vertically. (This is the reason we defined the bottle and break up it in part.)

Professional tip: Don’t use gradients as fill colours for both the bottle define or the liquid object. You’ll have a possibility so as to add gradients, highlights, and different visible results on the finish of the academic.

To search out the Revolve impact, pass to Impact > 3-d and Fabrics > 3-d (Classics) > Revolve (Vintage). On the most sensible of the conversation window, you’ll see a box categorized Place. Select Isometric Left. Underneath Revolve, tweak the next revolve and floor shading choices:

  • Attitude: This defines the level of rotation across the object’s axis. If set to 180°, the bottle will probably be break up in part vertically. Set the attitude to 360° to create a complete bottle.
  • Offset: This controls the offset distance from the thing’s vertical axis. Input 0.
  • Floor: This units the thing’s subject material and lights homes. Select No Shading.

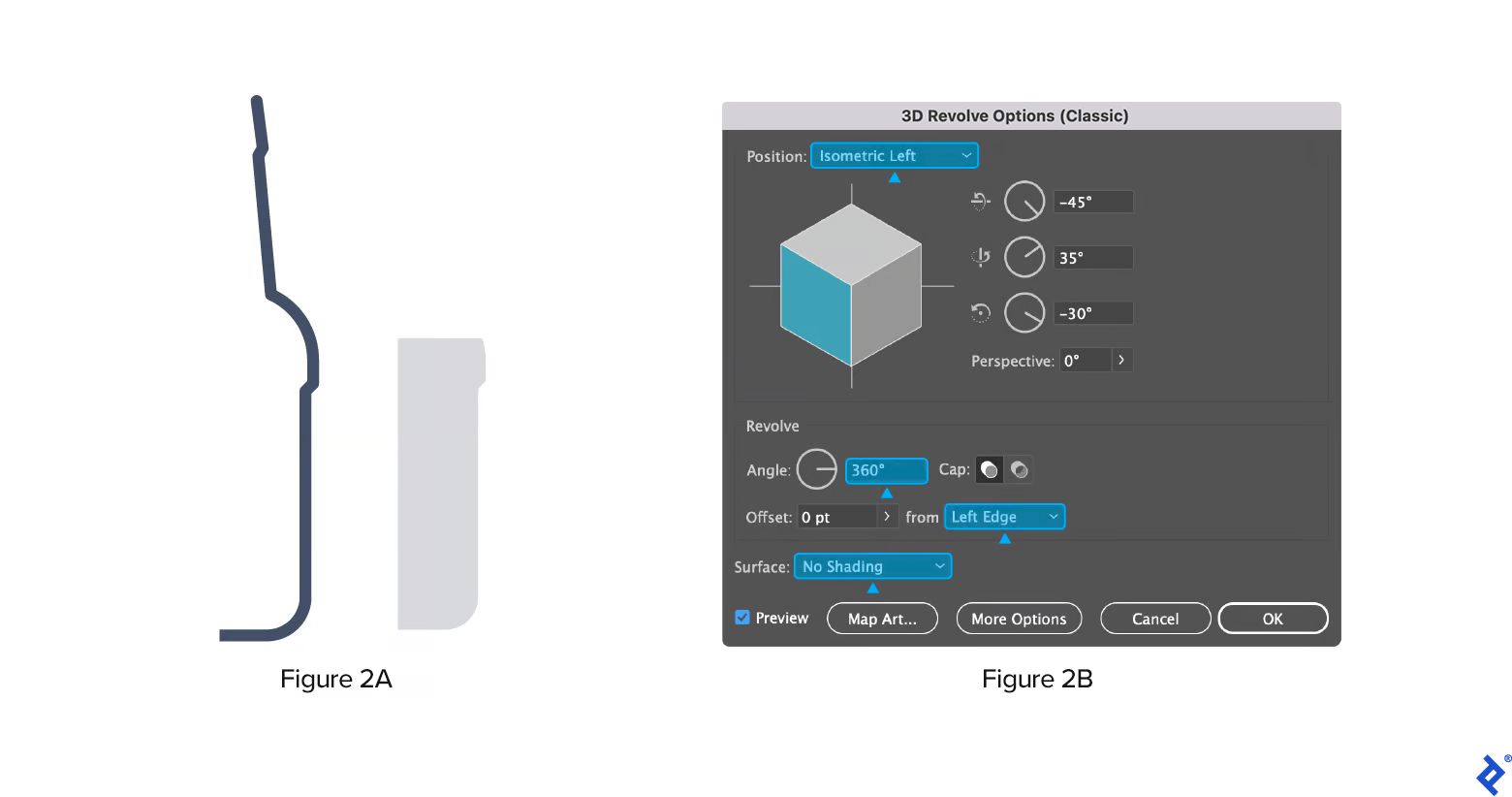

Ensure that the angle, offset, and surface have the correct settings.
Determine 2A: Ungroup the shapes and observe the Revolve impact. Determine 2B: Use the highlighted settings.

You’ve created an isometric bottle with liquid. Now it’s time so as to add labels.

Professional tip: You can be tempted to use the Amplify Look impact at this level, however don’t do this till we create the labels.

The Revolve effect gives the isometric illustration a rounded, 3D look.

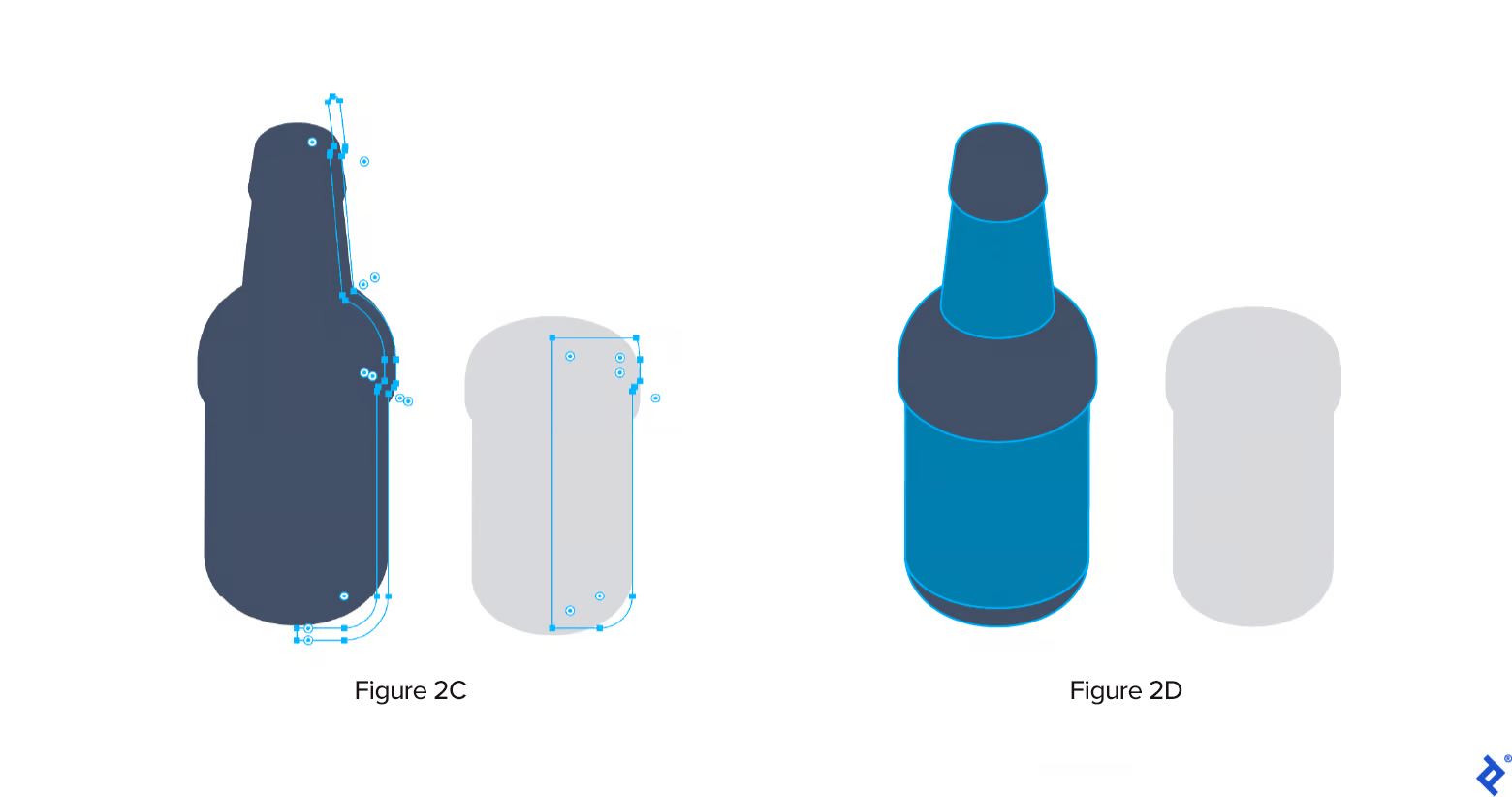

Determine 2C: Fill the revolved form with a non-gradient colour. Determine 2D: Spaces the place you are going to upload labels in Step 3.

Step 3: Get ready the Bottle Label

Use the bottle to outline the label dimensions. Within the instance symbol underneath, the peak of the frame label is obvious, however the peak of the neck label isn’t transparent since the floor isn’t parallel to the axis. An approximate peak will suffice. The label period is calculated the usage of the circle circumference formulation 2πr.

Whilst you’re satisfied along with your label design, convert each labels to symbols. The Symbols panel is located beneath Window > Symbols. Personally drag and drop the label designs into the panel to create symbols.

Professional tip: Symbols in Adobe Illustrator and Cartoon paintings in a similar fashion.

Estimate the height of the labels with the formula 2πr, then add symbols. In this 3D Illustrator tutorial, a black-and-white icon defines the bottle.

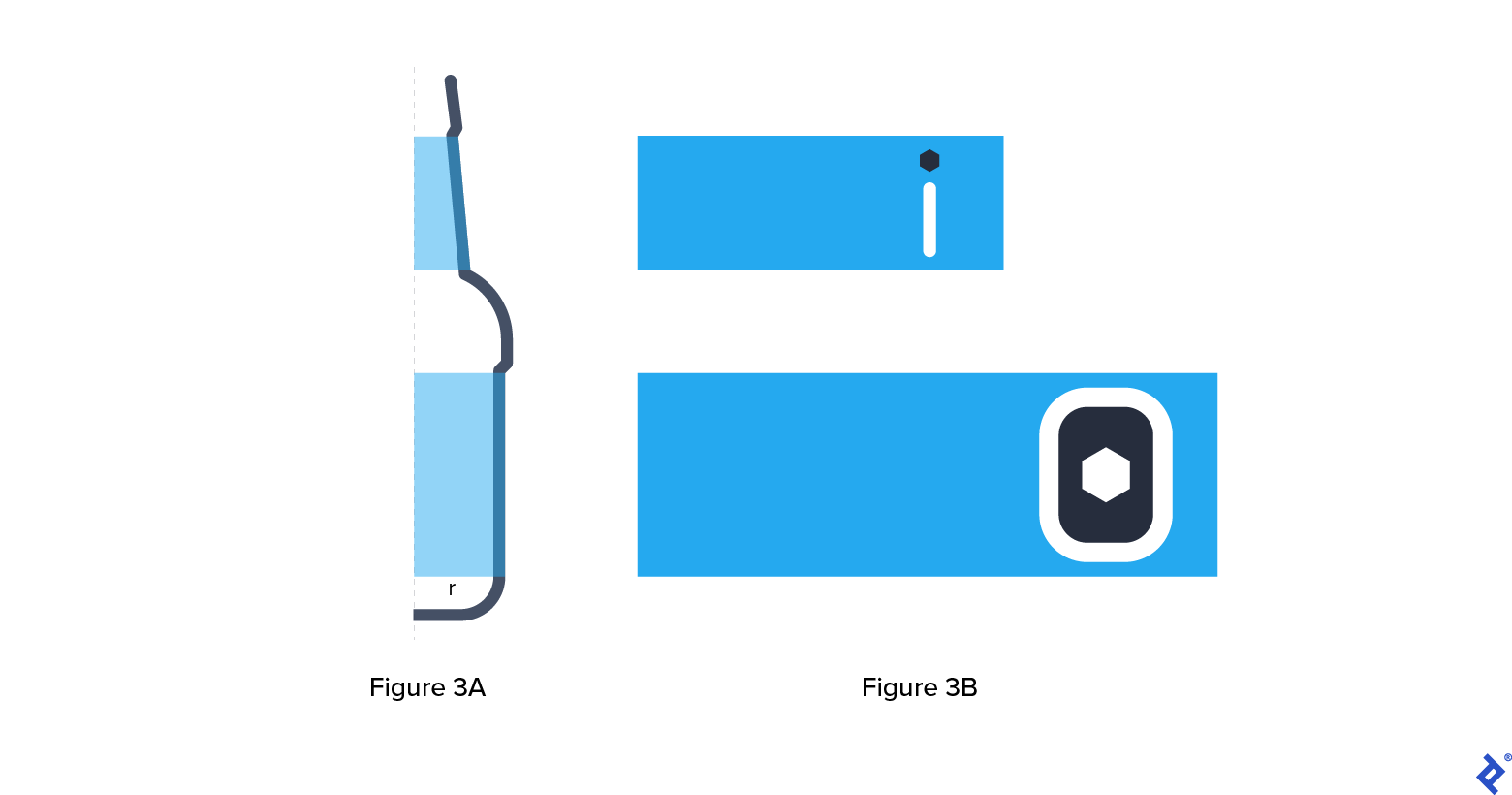

Determine 3A: Neck label peak and frame label peak. Determine 3B: Use the formulation 2πr to search out the circumference.

Step 4: Map the Label Onto the Bottle

So long as the bottle hasn’t been vectorized the usage of the Amplify Look impact, it’s absolutely editable. Make a choice the bottle after which navigate to Window > Look > 3-d Revolve.

To map the label design to the bottle, click on the Map Artwork possibility on the backside left of the 3-d Revolve panel. This may permit you to make a choice and modify the emblem for the bottle. Remember to fit the emblem to the proper floor. Click on Scale to Have compatibility, and the label will map to the bottle.

Practice the similar steps for the neck label.

With the Revolve feature, combine the bottle and labels. Use the highlighted settings to map the labels around the bottle.
Determine 4A: Preview of artwork mapped to bottle. Determine 4B: Use the highlighted settings.

Step 5: Blank Up the Document

Now it’s time to use Bezier curves—utilized in laptop graphics to supply steady curves which seem clean in any respect scales—in your bottle. Make a choice Object > Amplify Look.

Increasing an object’s look creates a grouped number of minor parts that give the phantasm of a 3-d object. Mix the weather with both the Pathfinder or Form Builder equipment to stay issues tidy.

Becoming a member of items will create undesirable anchor issues. Scale back them by means of settling on Object > Trail > Simplify. In the event you use Illustrator incessantly, obtain the VectorScribe plugin and use its Delete Anchor Level device to very best this step.

The isometric vector illustration needs to be simplified. Expand the bottle illustration and combine the segments so that they appear less cluttered.

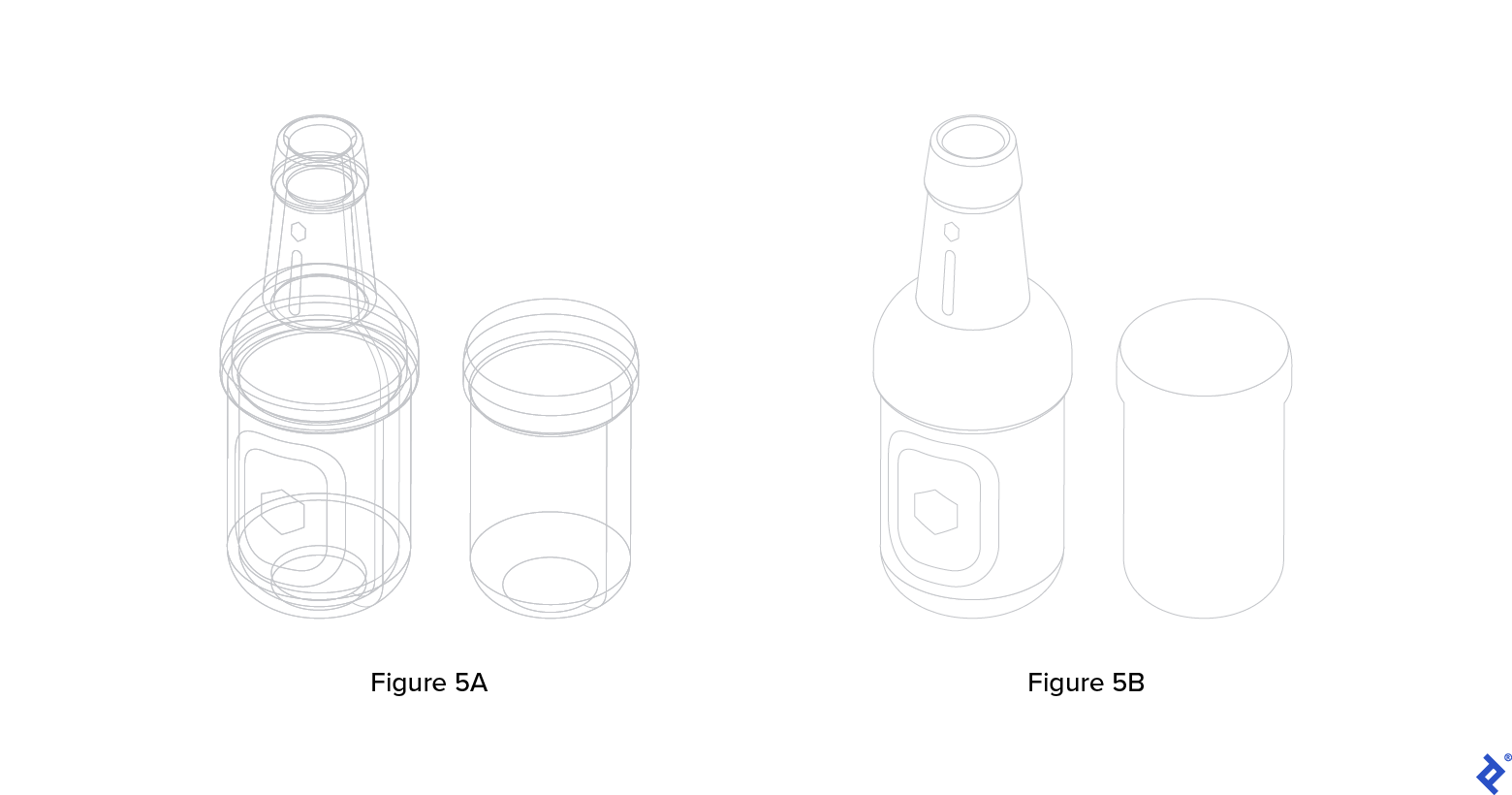

Determine 5A: A couple of segments created by means of the Amplify Look impact. Determine 5B: A couple of segments mixed and simplified.

Step 6: Refine Your Representation With Colours and Gradients

If you’ve created your isometric representation, chances are you’ll need to upload colours and gradients to lend a hand convey the bottle to lifestyles. Upload reflections, highlights, and shadows (arranged in separate layers) for a sensible glance, or use strokes and a simplified colour palette for a extra graphic vibe. In the event you’re not sure the place to start out, discover other colour combos with Illustrator’s palette generator. With a forged isometric representation basis, the design chances are never-ending.

The foundation of the isometric illustration is complete. Play around with gradients and color for a more realistic effect.
Determine 6A: Uncooked bottle and label design. Determine 6B: Bottle stylized with colour and gradients.

Examples of Isometric Illustrations in UI Design

Now that you’ve got a quick and simple strategy to create isometric illustrations, check out some examples from 3 Toptal different designers to get your ingenious juices flowing.

Virtual Convention Brochure

Štefan Kováč is a template fashion designer for the Adobe Inventory market. This case is a virtual convention brochure template he created the usage of easy strokes, shapes, textual content frames, and monochromatic gradients. To compose those drawings, Štefan used InDesign’s Rotation +/- 30° and Skew +/-30° results to reach isometric distortion.

Štefan’s isometric illustration uses 3D buildings and pathways to present information such as conference attendance and agenda.
Å tefan combines shapes, colours, textual content, and gradients in his isometric representation for the Adobe Inventory market.

Virtual Place of business Information

Paulina Jozwik used isometric illustrations to create a virtual office-space information for Teal Area. She selected this system because of its incidence in architectural drawings and since she felt that the third-dimensional nature of isometric pictures would lend a hand her renderings stand out on Teal Area’s site, which essentially employs flat design parts.

This isometric illustration shows structure and depth. Complete with sticky notes, a monitor, a table and chairs, it replicates a real-life conference room.
Paulina’s design demonstrates the intensity features of isometric representation, giving a sensible chicken’s-eye view of an workplace area.

Instagram Marketing campaign

To have fun the fiftieth Nationwide Day of Oman, Wafa’ Babasail was once commissioned to create a novel Instagram marketing campaign for Asyad Workforce, a logistics corporate within the Heart East. Wafa’ used isometric representation tactics and exaggerated scale relationships to design a map appearing the corporate’s common affect on Oman’s seaports.

Wafa’ highlighted brand details in her isometric illustration of this campaign, apparent in the ships, containers, and human characters.
Wielding area, colour, typography, reference pictures, and isometric representation, Wafa’ illustrated Asyad Workforce’s affect within the Heart East for the fiftieth Nationwide Day of Oman.

Convey Your UI Designs to Existence With Isometric Illustrations

Isometric illustrations lend a hand designers convey intensity, size, and character to their UI design initiatives. Historically, developing isometric illustrations has been a time-consuming activity, but it surely doesn’t must be. Whether or not you’re operating on a map, product rendering, or infographic, isometric drawing is a good way so as to add richness and viewpoint to internet and cellular illustrations.

By means of following the short and simple manner defined on this educational, you’ll be able to create shocking isometric paintings very quickly.
